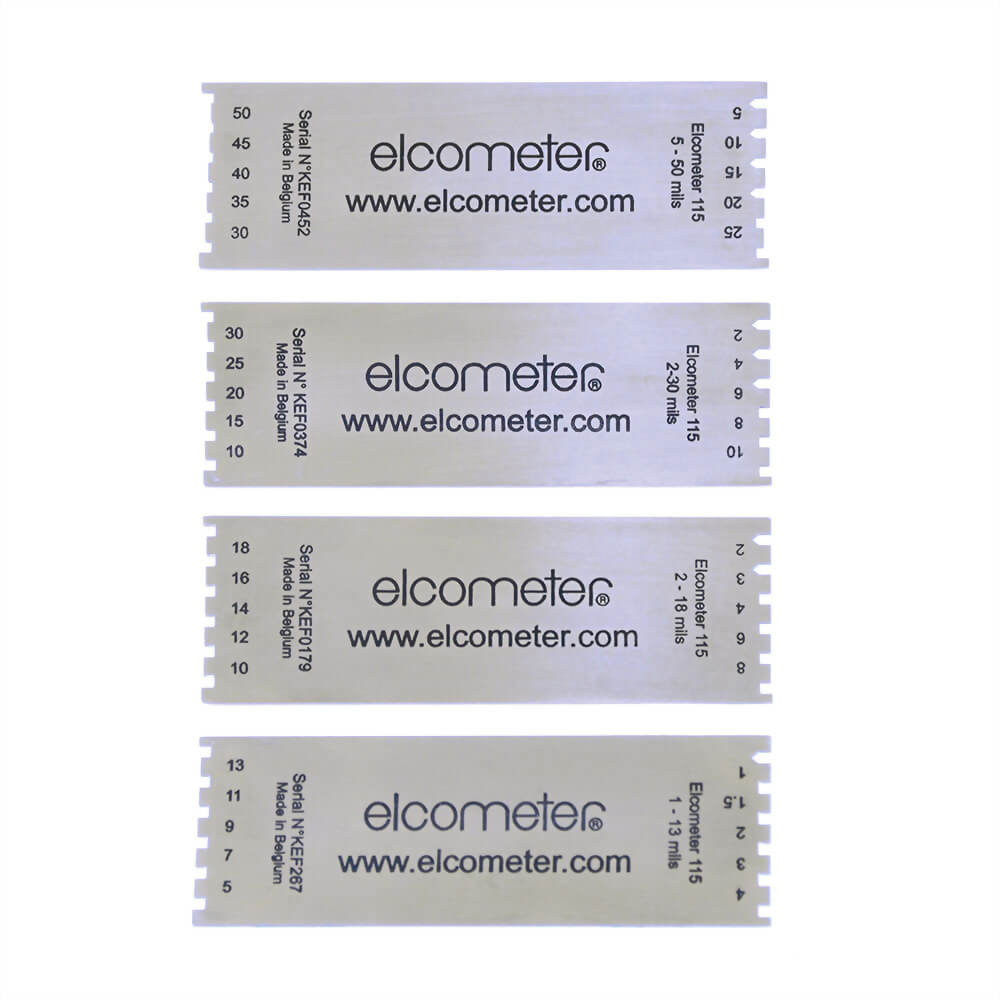

Elcometer 115 Wet Film Combs

These reusable precision stainless steel wet film combs are made to be long lasting and are supplied with either Metric or Imperial film thickness measurements.
Model : 115

These reusable precision stainless steel wet film combs are made to be long lasting and are supplied with either Metric or Imperial film thickness measurements.

Four separate wet film thickness ranges are available up to a maximum of 1250µm / 50mils and are manufactured to an accuracy of 5% or 2.5µm (0.01mil), whichever is the greater.

Each wet film comb has 10 measurement steps (teeth).

Technical Specification

METRIC COMBS
Part Number Range Measurement Steps Certificate
B11529455M 20 – 325µm 20, 35, 50, 75, 100, 125, 175, 225, 275, 325µm ο
B11529456M 50 – 450µm 50, 75, 100, 150, 200, 250, 300, 350, 400, 450µm ο
B11529457M

50 – 750µm

50, 100, 150, 200, 250, 350, 450, 550, 650, 750µm

ο

B11529458M

125 – 1250µm

125, 250, 375, 500, 625, 750, 875, 1000, 1125, 1250µm

ο

B1152959WM

-

Set of 4 Wet Film Combs

ο

Accuracy ±5% of marked value or 3μm (0.12mil) whichever is the greater
IMPERIAL COMBS
Part Number

Range

Measurement Steps

Certificate

B11529451E

1 – 13mils

1, 1.5, 2, 3, 4, 5, 7, 9, 11, 13mils

ο

B11529452E

2 – 18mils

2, 3, 4, 6, 8, 10, 12, 14, 16, 18mils

ο

B11529453E

2 – 30mils

2, 4, 6, 8, 10†, 10†, 15, 20, 25, 30mils

ο

B11529454E

5 – 50mils

5, 10, 15, 20, 25, 30, 35, 40, 45, 50mils

ο

B1152959WE

-

Set of 4 Wet Film Combs

ο

Accuracy

±5% of marked value or 3μm (0.12mil) whichever is the greater


STANDARDS:
ASTM D 4414-A, AS/NZS 1580.107.3, BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125, US NAVY PPI 63101-000, US NAVY NSI 009-32
Standards in grey have been superseded but are still recognised in some industries

ο Optional Calibration Certificate available

 Two 10mil values, one on each edge of the comb

WET FILM COMBS

How to use a Wet Film Comb

The Elcometer Wet Film Combs are easy to use and available in a variety of scales to meet different film thickness needs. When applying a liquid coating, by measuring the uncured film thickness, it is possible to determine the eventual dry film thickness, ensuring high quality finish with minimal waste.
